Square Gardens Project

A new residential tower block built specifically for students studying in Manchester.

The building has many facilities for its residents, including a fully equipped gym and virtual fitness system.

Square Gardens

Working on behalf of our client, who supplied and installed all of the gym facilities, we were requested to design, supply and install an LED Display system with 6.1 Surround Sound Audio within the studio. This would have a Technogym Virtual Fitness Kiosk connected to the display and audio.

Client Requirements

The client sought a solution to make the studio a multifunctional room, with the TechnoGym Kiosk as the main feature. They also wanted to be able to connect other devices such as laptops, DVD players, and Game consoles such as a PlayStation or Xbox. They also requested a cinema-type function where they could watch movies or shows via Netflix, Prime, Disney, or other subscription streaming services.

When instructors visit the studio, they are asked for a Bluetooth connection to connect their phones or other devices to play music.



Versatile Studio incorporating cutting-edge technology

TechnoGym Kiosk – Games Consoles – Cinema Area

Technical Display Systems designed a system incorporating all the client’s requested features. This consisted of the following:

  • 4m x 2m 1.9mm Pixel Pitch LED Display
  • An easy-to-use, custom-designed control management system that controls the touchscreen display functions
  • Denon 6.1 Surround Sound amplifier/processor
  • Q Acoustics Surround Sound Speakers
  • ROKU media player for On-Demand Steaming and subscription channels
  • Custom branded 5” Touch Screen Display to allow for easy operation without the need for remote controls
  • HDMI connection Port for Laptop and other devices with HDMI output
  • Bluetooth connection panel
  • TechnoGym Kiosk for streaming virtual fitness videos

Sweat it out in the training class or sit back and enjoy the show

Control Management System Main features:

  • Full 5” touchscreen display that allows users to select which function they would like to access
  • The home screen allows users to access the menu page, which allows them to select from TechnoGym Kiosk, HDMI Input, and Roku Streaming Channels
  • Select from various streaming services within the ROKU menu, such as Netflix, BBC iPlayer, Prime, Disney, etc
  • The HDMI option selects the device connected to the HDMI input plate
  • The TechnoGym option allows users to choose on-demand virtual fitness videos from the kiosk
  • Volume control is present for each function
  • Ability to adjust the brightness of the LED display

The Solution

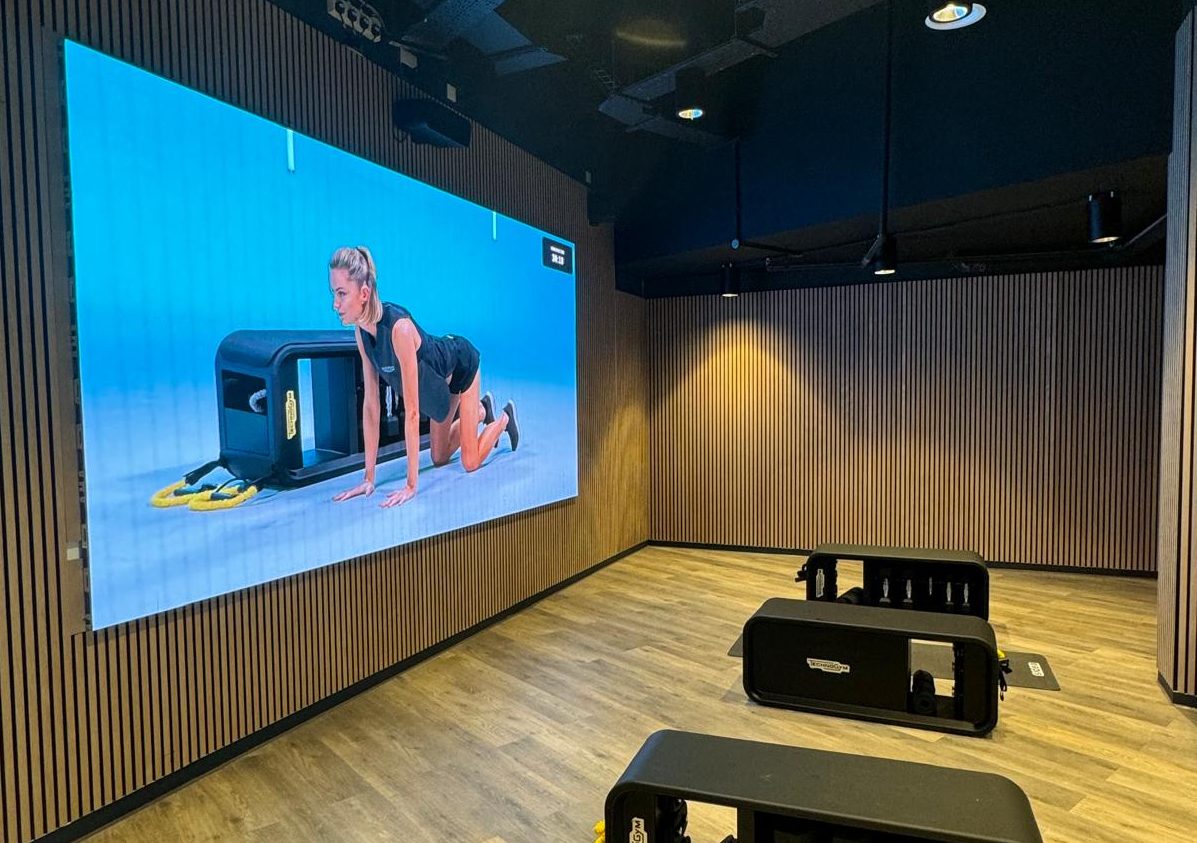

Technical Display Systems installed the LED Display on the main wall of the studio, giving the maximum viewing angle from virtually all areas of the studio. We made it possible for staff to connect laptops, game consoles, or any other device that uses HDMI for its output. This option is beneficial when the management wants to deliver training classes, hold meetings, or have gaming nights for the residents.

The ROKU streaming solution allows our client to show films, box sets, or sporting events for residents to enjoy at scheduled times, or the studio can be pre-booked. Just sign in to the streaming service you want to watch using the on-screen keyboard, sit back, and enjoy the show.

Adding a Bluetooth connection allows users to connect their phones or other Bluetooth devices to the audio system, allowing them to play their own choice of music.

A Totally Bespoke Audio-Visual System

Technical Display Systems was asked to provide a multipurpose environment where residents can easily select what they want to display on an incredible 4m x 2m LED Display.

We achieved this and delivered to our client a bespoke audio-visual system personalised with Square Gardens branding. Our client and the residents were extremely happy with the finished system.
